Augmented Reality


Augmented reality (AR) is a live, copy, view of a physical, real-world environment whose elements are augmented (or supplemented) by computer-generated sensory input such as sound, video, graphics or GPS data. It is related to a more general concept called mediated reality, in which a view of reality is modified (possibly even diminished rather than augmented) by a computer. As a result, the technology functions by enhancing one's current perception of reality.

By contrast, virtual reality replaces the real world with a simulated one. Augmentation is conventionally in real-time and in semantic context with environmental elements, such as sports scores on TV during a match. With the help of advanced AR technology (e.g. adding computer vision and object recognition) the information about the surrounding real world of the user becomes interactive and digitally manipulable. Artificial information about the environment and its objects can be overlaid on the real world.

Hardware components for augmented reality are: processor, display, sensors and input devices. Modern mobile computing devices like smartphones and tablet computers contain these elements which often include a camera and MEMS sensors such as accelerometer, GPS, and solid state compass, making them suitable AR platforms.




Virtual Reality


Augmented reality (AR) is a live, direct or indirect, view of a physical, real-world environment whose elements are augmented by computer-generated sensory input such as sound, video, graphics or GPS data. It is related to a more general concept called mediated reality, in which a view of reality is modified (possibly even diminished rather than augmented) by a computer. As a result, the technology functions by enhancing one’s current perception of reality.

By contrast, virtual reality replaces the real world with a simulated one. Augmentation is conventionally in real-time and in semantic context with environmental elements, such as sports scores on TV during a match. With the help of advanced AR technology (e.g. adding computer vision and object recognition) the information about the surrounding real world of the user becomes interactive and digitally manipulable. Artificial information about the environment and its objects can be overlaid on the real world.







Various technologies are used in Augmented Reality rendering including optical projection systems, monitors, hand held devices, and display systems worn on one's person.


Head-mounted
A head-mounted display (HMD) is a display device paired to a headset such as a harness or helmet. HMDs place images of both the physical world and virtual objects over the user's field of view. Modern HMDs often employ sensors for six degrees of freedom monitoring that allow the system to align virtual information to the physical world and adjust accordingly with the user's head movements. HMDs can provide users immersive, mobile and collaborative AR experiences.


Eyeglasses
AR displays can be rendered on devices resembling eyeglasses. Versions include eye wear that employ cameras to intercept the real world view and re-display its augmented view through the eye piecesand devices in which the AR imagery is projected through or reflected off the surfaces of the eye wear lens pieces. Google Glass is not intended for an AR experience, but third-party developers are pushing the device toward a mainstream AR experience. After the debut of Google Glass, many other AR devices, Google Glass alternatives, emerged.

Most promising Google Alternatives can be listed as Vuzix M100, Optinvent, Meta Space Glasses, Telepathy, Recon Jet, Glass Up. CrowdOptic, an existing app for smartphones, applies algorithms and triangulation techniques to photo metadata including GPS position, compass heading, and a time stamp to arrive at a relative significance value for photo objects. CrowdOptic technology can be used by Google Glass users to learn where to look at a given point in time.


Contact lenses
Contact lenses that display AR imaging are in development. These bionic contact lenses might contain the elements for display embedded into the lens including integrated circuitry, LEDs and an antenna for wireless communication. Another version of contact lenses, in development for the U.S. Military, is designed to function with AR spectacles, allowing soldiers to focus on close-to-the-eye AR images on the spectacles and distant real world objects at the same time. In 2013, at the Augmented World Expo Conference, a futuristic video named Sight featuring the potential of having augmented reality through contact lenses received the best futuristic augmented reality video award.


Virtual retinal display
A virtual retinal display (VRD) is a personal display device under development at the University of Washington's Human Interface Technology Laboratory. With this technology, a display is scanned directly onto the retina of a viewer's eye. The viewer sees what appears to be a conventional display floating in space in front of them.


EyeTap
The EyeTap (also known as Generation-2 Glass) captures rays of light that would otherwise pass through the center of a lens of an eye of the wearer, and substituted each ray of light for synthetic computer-controlled light. The Generation-4 Glass (Laser EyeTap) is similar to the VRD (i.e. it uses a computer controlled laser light source) except that it also has infinite depth of focus and causes the eye itself to, in effect, function as both a camera and a display, by way of exact alignment with the eye, and resynthesis (in laser light) of rays of light entering the eye.


Handheld
Handheld displays employ a small display that fits in a user's hand. All handheld AR solutions to date opt for video see-through. Initially handheld AR employed fiduciary markers, and later GPS units and MEMS sensors such as digital compasses and six degrees of freedom accelerometer–gyroscope. Today SLAM markerless trackers such as PTAM are starting to come into use. Handheld display AR promises to be the first commercial success for AR technologies. The two main advantages of handheld AR is the portable nature of handheld devices and ubiquitous nature of camera phones. The disadvantages are the physical constraints of the user having to hold the handheld device out in front of them at all times as well as distorting effect of classically wide-angled mobile phone cameras when compared to the real world as viewed through the eye.


Spatial
Spatial Augmented Reality (SAR) augments real world objects and scenes without the use of special displays such as monitors, head mounted displays or hand-held devices. SAR makes use of digital projectors to display graphical information onto physical objects. The key difference in SAR is that the display is separated from the users of the system. Because the displays are not associated with each user, SAR scales naturally up to groups of users, thus allowing for collocated collaboration between users.

Examples include shader lamps, mobile projectors, virtual tables, and smart projectors. Shader lamps mimic and augment reality by projecting imagery onto neutral objects, providing the opportunity to enhance the object's appearance with materials of a simple unit- a projector, camera, and sensor.

Other applications include table and wall projections. One innovation, the Extended Virtual Table, separates the virtual from the real by including beam-splitter mirrors attached to the ceiling at an adjustable angle. Virtual showcases, which employ beam-splitter mirrors together with multiple graphics displays, provide an interactive means of simultaneously engaging with the virtual and the real.Many more implementations and configurations make spatial augmented reality display an increasingly attractive interactive alternative.

A SAR system can display on any number of surfaces of an indoor setting at once. SAR supports both a graphical visualization and passive haptic sensation for the end users. Users are able to touch physical objects in a process that provides passive haptic sensation.


Tracking
Modern mobile augmented reality systems use one or more of the following tracking technologies: digital cameras and/or other optical sensors, accelerometers, GPS, gyroscopes, solid state compasses, RFID and wireless sensors. These technologies offer varying levels of accuracy and precision. Most important is the position and orientation of the user's head. Tracking the user's hand(s) or a handheld input device can provide a 6DOF interaction technique.


Input devices
Techniques include speech recognition systems that translate a user's spoken words into computer instructions and gesture recognition systems that can interpret a user's body movements by visual detection or from sensors embedded in a peripheral device such as a wand, stylus, pointer, glove or other body wear.


Computer
The computer analyzes the sensed visual and other data to synthesize and position augmentations.


Software and Algorithms
A key measure of AR systems is how realistically they integrate augmentations with the real world. The software must derive real world coordinates, independent from the camera, from camera images. That process is called image registration which uses different methods of computer vision, mostly related to video tracking.= Many computer vision methods of augmented reality are inherited from visual odometry. Usually those methods consist of two parts.

First detect interest points, or fiduciary markers, or optical flow in the camera images. First stage can use feature detection methods like corner detection, blob detection, edge detection or thresholding and/or other image processing methods. The second stage restores a real world coordinate system from the data obtained in the first stage.

Some methods assume objects with known geometry (or fiduciary markers) present in the scene. In some of those cases the scene 3D structure should be precalculated beforehand. If part of the scene is unknown simultaneous localization and mapping (SLAM) can map relative positions. If no information about scene geometry is available, structure from motion methods like bundle adjustment are used. Mathematical methods used in the second stage include projective (epipolar) geometry, geometric algebra, rotation representation with exponential map, kalman and particle filters, nonlinear optimization, robust statistics.

Augmented Reality Markup Language (ARML) is a data standard developed within the Open Geospatial Consortium (OGC), which consists of an XML grammar to describe the location and appearance of virtual objects in the scene, as well as ECMAScript bindings to allow dynamic access to properties of virtual objects.

To enable rapid development of Augmented Reality Application, some software development kits (SDK) have emerged. Some of the well known AR SDKs are offered by Metaio, Vufoia, Wikitude and Layar.




Applications


Archaeology
AR can be used to aid archaeological research, by augmenting archaeological features onto the modern landscape, enabling archaeologists to formulate conclusions about site placement and configuration. Another application given to AR in this field is the possibility for users to rebuild ruins, buildings, or even landscapes as they formerly existed.


Architecture
AR can aid in visualizing building projects. Computer-generated images of a structure can be superimposed into a real life local view of a property before the physical building is constructed there. AR can also be employed within an architect's work space, rendering into their view animated 3D visualizations of their 2D drawings. Architecture sight-seeing can be enhanced with AR applications allowing users viewing a building's exterior to virtually see through its walls, viewing its interior objects and layout.


Art
AR technology has helped disabled individuals create art by using eye tracking to translate a user's eye movements into drawings on a screen. An item such as a commemorative coin can be designed so that when scanned by an AR-enabled device it displays additional objects and layers of information that were not visible in a real world view of it. In 2013, L'Oreal used CrowdOptic technology to create an augmented reality at the seventh annual Luminato Festival in Toronto, Canada.


Commerce
AR can enhance product previews such as allowing a customer to view what's inside a product's packaging without opening it. AR can also be used as an aid in selecting products from a catalog or through a kiosk. Scanned images of products can activate views of additional content such as customization options and additional images of the product in its use. AR is used to integrate print and video marketing. Printed marketing material can be designed with certain "trigger" images that, when scanned by an AR enabled device using image recognition, activate a video version of the promotional material.


Construction
With the continual improvements to GPS accuracy, businesses are able to use augmented reality to visualize geo-referenced models of construction sites, underground structures, cables and pipes using mobile devices. Following the Christchurch earthquake, the University of Canterbury released, CityViewAR, which enabled city planners and engineers to visualize buildings that were destroyed in the earthquake. Not only did this provide planners with tools to reference the previous cityscape, but it also served as a reminder to the magnitude of the devastation caused, as entire buildings were demolished.


Education
Augmented reality applications can complement a standard curriculum. Text, graphics, video and audio can be superimposed into a student's real time environment. Textbooks, flashcards and other educational reading material can contain embedded “markers” that, when scanned by an AR device, produce supplementary information to the student rendered in a multimedia format.

Students can participate interactively with computer generated simulations of historical events, exploring and learning details of each significant area of the event site. AR can aid students in understanding chemistry by allowing them to visualize the spatial structure of a molecule and interact with a virtual model of it that appears, in a camera image, positioned at a marker held in their hand. Augmented reality technology also permits learning via remote collaboration, in which students and instructors not at the same physical location can share a common virtual learning environment populated by virtual objects and learning materials and interact with another within that setting.


Everyday
Since the 1970s and early 1980s, Steve Mann has been developing technologies meant for everyday use i.e. "horizontal" across all applications rather than a specific "vertical" market. Examples include Mann's "EyeTap Digital Eye Glass", a general-purpose seeing aid that does dynamic-range management (HDR vision) and overlays, underlays, simultaneous augmentation and diminishment (e.g. diminishing the electric arc while looking at a welding torch)


Gaming
Augmented reality allows gamers to experience digital game play in a real world environment. In the last 10 years there has been a lot of improvements of technology, resulting in better movement detection and the possibility for the Wii to exist, but also direct detection of the player's movements.


Industrial Design
AR can help industrial designers experience a product's design and operation before completion. Volkswagen uses AR for comparing calculated and actual crash test imagery. AR can be used to visualize and modify a car body structure and engine layout. AR can also be used to compare digital mock-ups with physical mock-ups for finding discrepancies between them.


Medical
Augmented Reality can provide the surgeon with information, which are otherwise hidden, such as showing the heartbeat rate, the blood pressure, the state of the patient's organ, etc. AR can be used to let a doctor look inside a patient by combining one source of images such as an X-ray with another such as video. Examples include a virtual X-ray view based on prior tomography or on real time images from ultrasound and confocal microscopy probes or visualizing the position of a tumor in the video of an endoscope. AR can enhance viewing a fetus inside a mother's womb.


Military
In combat, AR can serve as a networked communication system that renders useful battlefield data onto a soldier's goggles in real time. From the soldier's viewpoint, people and various objects can be marked with special indicators to warn of potential dangers. Virtual maps and 360° view camera imaging can also be rendered to aid a soldier's navigation and battlefield perspective, and this can be transmitted to military leaders at a remote command center.


Navigation
AR can augment the effectiveness of navigation devices. Information can be displayed on an automobile's windshield indicating destination directions and meter, weather, terrain, road conditions and traffic information as well as alerts to potential hazards in their path. Aboard maritime vessels, AR can allow bridge watch-standers to continuously monitor important information such as a ship's heading and speed while moving throughout the bridge or performing other tasks.[97]


Office workplace
AR can help facilitate collaboration among distributed team members in a work force via conferences with real and virtual participants. AR tasks can include brainstorming and discussion meetings utilizing common visualization via touch screen tables, interactive digital whiteboards, shared design spaces, and distributed control rooms.[98][99][100]


Sports and Entertainment
AR has become common in sports telecasting. Sports and entertainment venues are provided with see-through and overlay augmentation through tracked camera feeds for enhanced viewing by the audience. Examples include the yellow "first down" line seen in television broadcasts of American football games showing the line the offensive team must cross to receive a first down. AR is also used in association with football and other sporting events to show commercial advertisements overlaid onto the view of the playing area. Sections of rugby fields and cricket pitches also display sponsored images. Swimming telecasts often add a line across the lanes to indicate the position of the current record holder as a race proceeds to allow viewers to compare the current race to the best performance. Other examples include hockey puck tracking and annotations of racing car performance and snooker ball trajectories.

AR can enhance concert and theater performances. For example, artists can allow listeners to augment their listening experience by adding their performance to that of other bands/groups of users.

The gaming industry has benefited a lot from the development of this technology. A number of games have been developed for prepared indoor environments. Early AR games also include AR air hockey, collaborative combat against virtual enemies, and an AR-enhanced pool games. A significant number of games incorporate AR in them and the introduction of the smartphone has made a bigger impact.


Task support
Complex tasks such as assembly, maintenance, and surgery can be simplified by inserting additional information into the field of view. For example, labels can be displayed on parts of a system to clarify operating instructions for a mechanic who is performing maintenance on the system. Assembly lines gain many benefits from the usage of AR. In addition to Boeing, BMW and Volkswagen are known for incorporating this technology in their assembly line to improve their manufacturing and assembly processes. Big machines are difficult to maintain because of the multiple layers or structures they have. With the use of AR the workers can complete their job in a much easier way because AR permits them to look through the machine as if it was with x-ray, pointing them to the problem right away.


Television
Weather visualizations were the first application of Augmented Reality to television. It has now become common in weather forecasting to display full motion video of images captured in real-time from multiple cameras and other imaging devices. Coupled with 3D graphics symbols and mapped to a common virtual geospace model, these animated visualizations constitute the first true application of AR to TV.

Augmented reality has also become common in sports telecasting. Sports and entertainment venues are provided with see-through and overlay augmentation through tracked camera feeds for enhanced viewing by the audience. Examples include the yellow "first down" line seen in television broadcasts of American football games showing the line the offensive team must cross to receive a first down. AR is also used in association with football and other sporting events to show commercial advertisements overlaid onto the view of the playing area. Sections of rugby fields and cricket pitches also display sponsored images. Swimming telecasts often add a line across the lanes to indicate the position of the current record holder as a race proceeds to allow viewers to compare the current race to the best performance. Other examples include hockey puck tracking and annotations of racing car performance and snooker ball trajectories.

Augmented reality is starting to allow Next Generation TV viewers to interact with the programs they are watching. They can place objects into an existing program and interact with these objects, such as moving them around. Avatars of real persons in real time who are also watching the same program.


Tourism and sightseeing
Augmented reality applications can enhance a user's experience when traveling by providing real time informational displays regarding a location and its features, including comments made by previous visitors of the site. AR applications allow tourists to experience simulations of historical events, places and objects by rendering them into their current view of a landscape.[ AR applications can also present location information by audio, announcing features of interest at a particular site as they become visible to the user.


Translation
AR systems can interpret foreign text on signs and menus and, in a user's augmented view, re-display the text in the user's language. Spoken words of a foreign language can be translated and displayed in a user's view as printed subtitles.




Augmented Reality in the News ...





  Augmented Reality’s Next Frontier Is Real-World Search   Wired - June 19, 2014

Social networks and platforms like Instagram, Pinterest, Snapchat and Facebook have all driven a cultural shift in the way we exchange information. An NYU study found that people retain close to 80 percent of information they consume through images versus just 10 percent of what they read. If we regularly consume rich content from the real world through our devices, we could learn, retain, and express our ideas and information more effectively.




Will These Augmented-Reality Contact Lenses Replace Your Smartphone?   Smithsonian - January 18, 2014

In attendance at this year's Consumer Electronics Show was a little known startup showcasing a wearable technology that generates an interactive display right before your eyes. And no, it's not a knock-off of Google Glass. Seattle-based Innovega, if you can believe it, touts a prototype for contact lenses paired with eyeglasses that promise, through the wonders of augmented reality, an even more immersive experience.




  General Motors creates prototype augmented reality windshield   Washington Examiner- September 20, 2013




Posters with depth effect -- 3D advertising   PhysOrg - May 4, 2010

Soon, manufacturers will be able to advertize with 3D posters that are remarkable for their hitherto unattained spatial effect. The casual observer need not use any special glasses. Modern lighting techniques generate the 3D images that can measure up to five meters in size.




  Augmented reality puts the squeeze into virtual hugs   PhysOrg - April 5, 2010
Five years in the making, the device aims to inject a little physicality into online chatter, boosting the emotional quotient of virtual exchanges between flesh-and-blood people.




  Augmented reality windshield from GM to show drivers potential hazards   PhysOrg - March 20, 2010

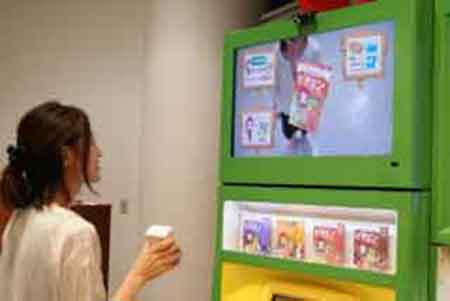

Augmented reality systems appearing in Japanese shopping malls   PhysOrg - December 9, 2009

Augmented reality (AR) systems are being developed for real applications in store windows and shopping malls in Japan. AR systems present a real field of view of a physical environment augmented by computer-generated imagery (CGI), thus combining the real world with the virtual. They are often interactive in real time and sometimes the images are three-dimensional. In Japan AR technologies are finding their way into digital signage applications and store windows, showcasing products and giving shoppers additional information on products.




  Augmented Reality: Metaio touch interaction   Wired - September 16, 2009




Augmented Reality Under Water   Science Daily - March 24, 2009

The Fraunhofer Institute for Applied Information Technology FIT just presented an Augmented Reality system for use under water. A diver's mask with a special display lets the diver see his or her real submarine surroundings overlaid with computer-generated virtual scenes. In the pilot application, an AR game, the player sees a coral reef with shoals, mussels and weeds, instead of a plain indoor pool. Applications for professional divers are being investigated. Augmented Reality research has made enormous progress in the last few years, creating many exciting, albeit land-based applications. Now, FIT researchers are the first to demonstrate an AR application designed for underwater use. Submerged use is a major challenge for technical systems. They must be waterproof and robust enough to withstand the high additional pressure of increasing diving depth.




Wikitude World Browser on the iPhone 3GS uses GPS and a solid state compass.







App iSkull, an augmented human skull for education
